The station ...

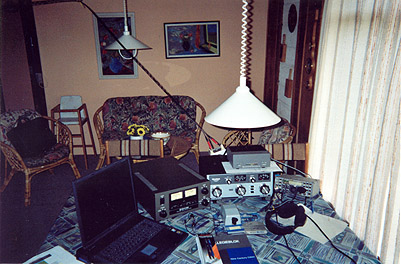

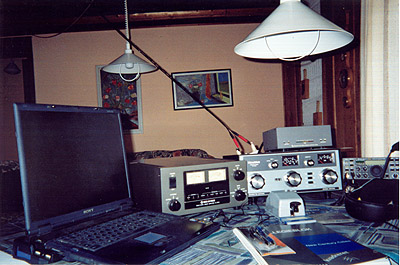

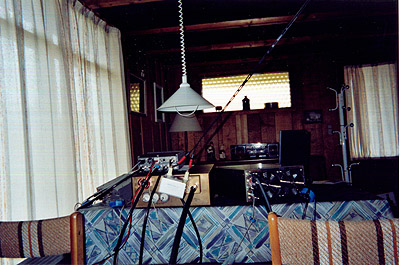

From left to right: Sony PCG-GRX616SP, Tokyo HyPower HL-2KFX (1kW solid state), Heathkit Tuner for the low bands with Elecraft 100W PA, Elecraft K2 (Nr. 3248).
Rear view ... 4:1 balun by DK3YD
And this is supposed to be a wireless hobby?

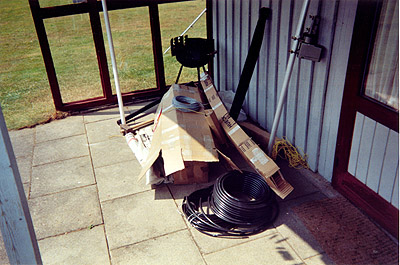

"Building material"

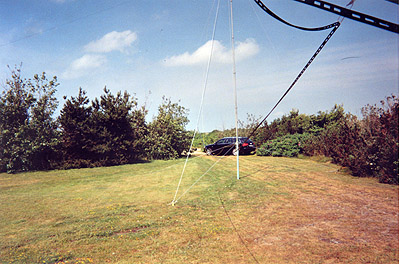

Feed line to the 2x 20m "Bent around a corner Inverted V"

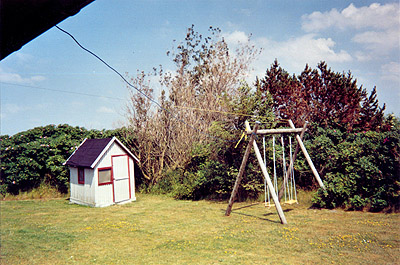

Children's swing misused to fasten one of the ends of the "Bent Inverted V"
The "bent inverted V" ...

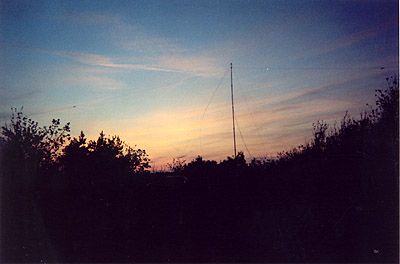

It never really was dark, I took this picture at about 23:30 local time (21:30 UTC).
Feed point of the Inverted V, about 9m above ground.
Mni tnx to Matthias (DK4YJ) for the "low band" mast.
SpiderBeam construction (1)
SpiderBeam construction (2)

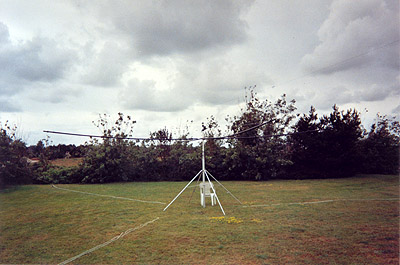

SpiderBeam construction (3)

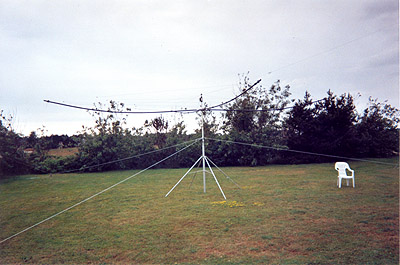

SpiderBeam construction (4)

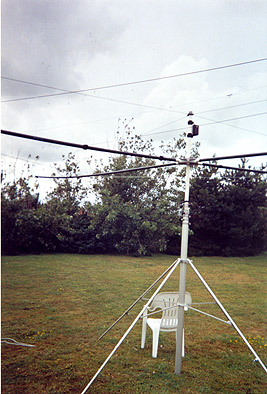

Checking the SWR at about 5m above ground.

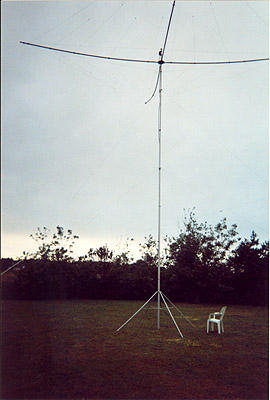

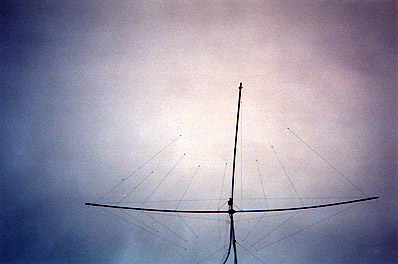

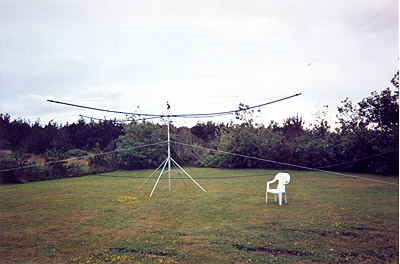

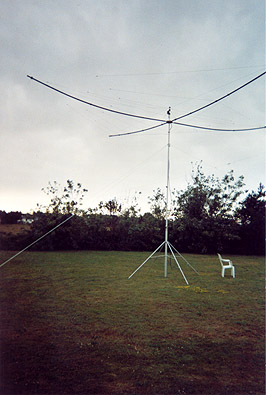

SpiderBeam is up to 11m and working well.
The sun is doing it's best to break through the clouds.

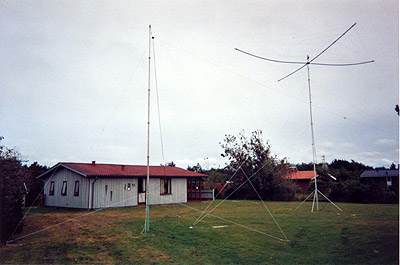

Antennas up and running, now the fun can beginn.

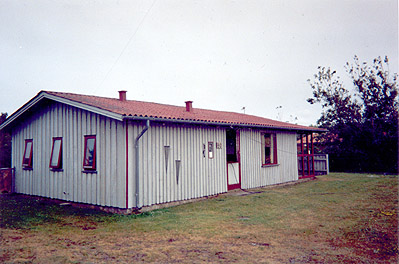

View of the vaction cottage from the 9m mast.

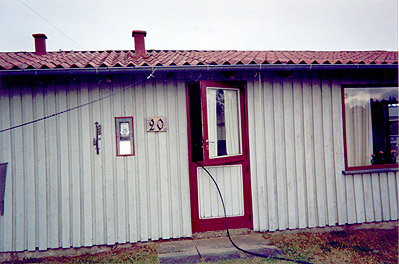

Feedlines ...
QSL Card
QTH
A look north from a low dike before leaving ...
A final look south from Sindrup towards Draget, on my way back to DL. ...
73 de toby
